Electric Automatic Thermal Film Laminator Machine SADF-540B

Shanghai Printyoung International Industry Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Electric Automatic Thermal Film Laminator Machine SADF-540B

Brand Name : PRINTYOUNG

Model Number : SADF-540B

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : US 36200 Set

Payment Terms : L/C, T/T

Supply Ability : 10 Set/Sets per Month

Delivery Time : 30 days

Packaging Details : Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.

Type : Laminating Machine

Automatic Grade : Automatic

Driven Type : Electric

Voltage : 380V

Dimension : 3200 * 1250 * 1650 mm

Weight : 1400 KG

Model : SADF-540B

Max Paper Size : 540 * 780 mm

Min Paper Size : 210 * 290 mm

Laminating Speed : 0-30 m/min

Paper Thickness : 105-500 gsm

Gross Power : 15/8 kw

Contact Now

Electric Automatic Thermal Film Laminator Machine SADF-540B

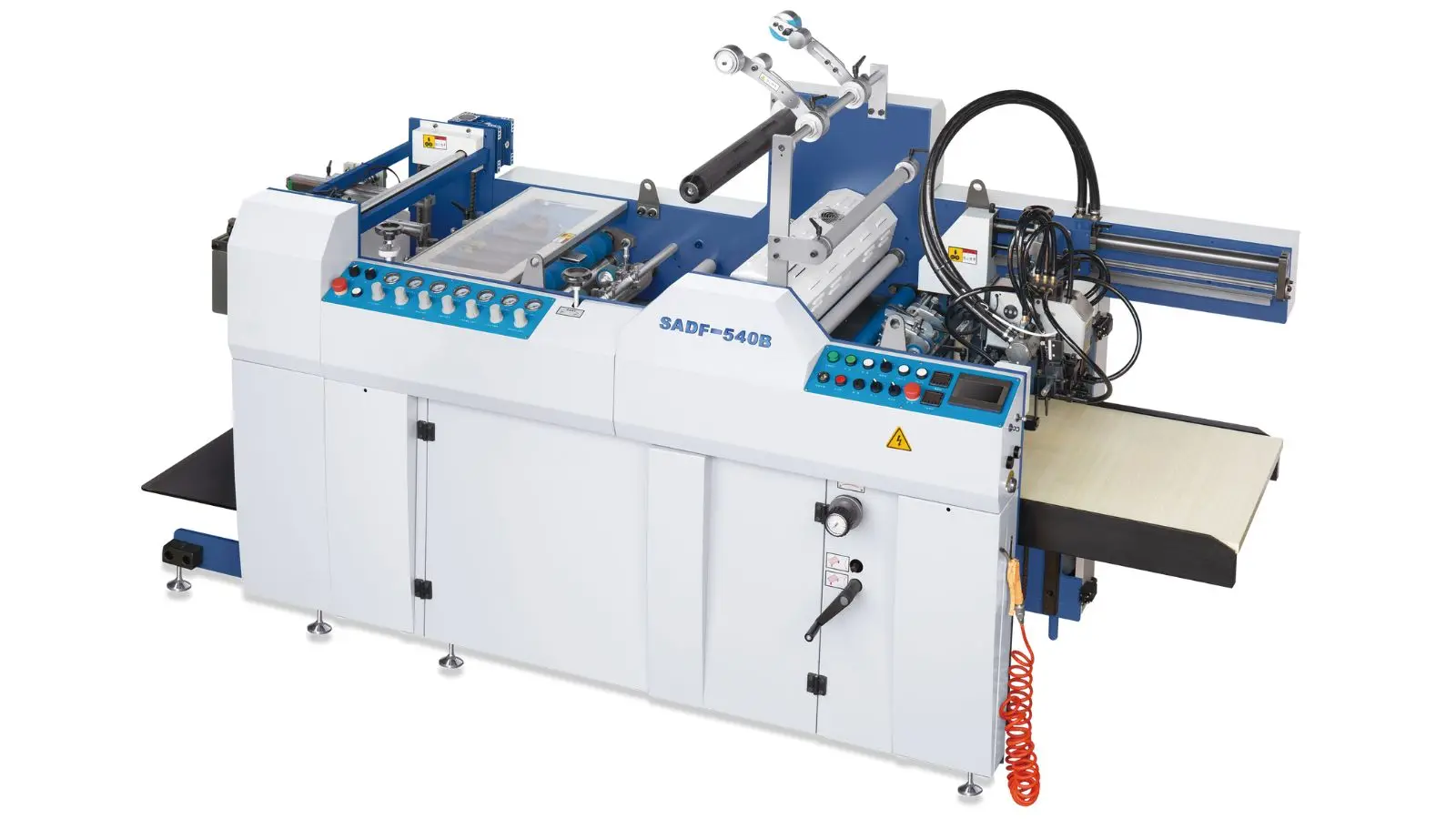

SADF-540B Fully Automatic Thermal Film Laminator
Electric Automatic Thermal Film Laminator Machine SADF-540B
Features
Feeder
*Servo-controlled feeder head (oil-free vacuum pump) replenishes sheets
*Sheets gap sensor for self-protection
Laminator
*Electromagnetic-heated,chrome laminating roller
*Pneumatic system provides a steady pressure
*Film mounted on a quick-change,inflatable air-shaft with the scale on it
*Air-shaft ensures precise film release tension and speed
*Film roll slitting and perforating mechanisms
*Laminating pressure up to 8 MPa
Sheeter
*Adjustable pro-active,anti-curl bar takes the curl out of laminated sheets
*Steer wheels exert negative force on one side to help with sheeting
*Adjustable sheeting pressure
*Stable and efficient pneumatic sheeting system
*Vibrating jogger table
Others
*Touch screen and control panel with colourful buttons
Technical Parameters
SADF-540B Film Laminator Machine
Model
SADF-540B
Max Paper Size
540*780mm
Min Paper Size
210*290mm
Laminating Speed
0-30m/min
Paper Thickness
105-500g/m2
Gross Power
15/8KW
Total Weight
1400kg
Overall Dimensions
3200*1250*1650mm
Configuration
Electric Automatic Thermal Film Laminator Machine SADF-540B Electric Automatic Thermal Film Laminator Machine SADF-540B

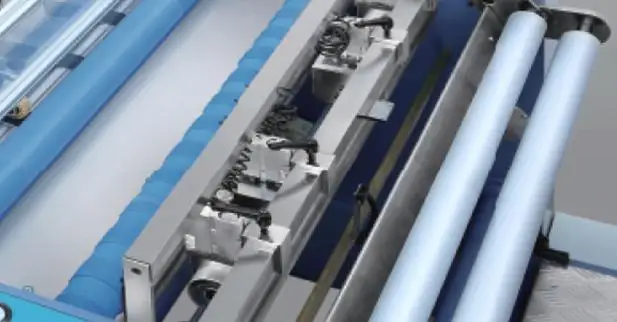

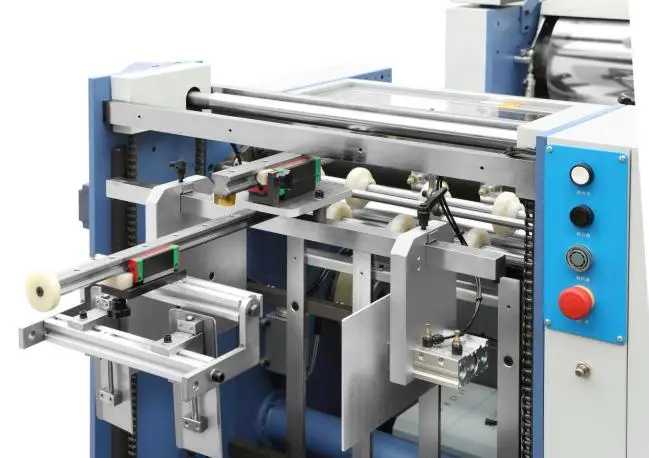

Feeder head Sheets gap sensor
Electric Automatic Thermal Film Laminator Machine SADF-540B Electric Automatic Thermal Film Laminator Machine SADF-540B

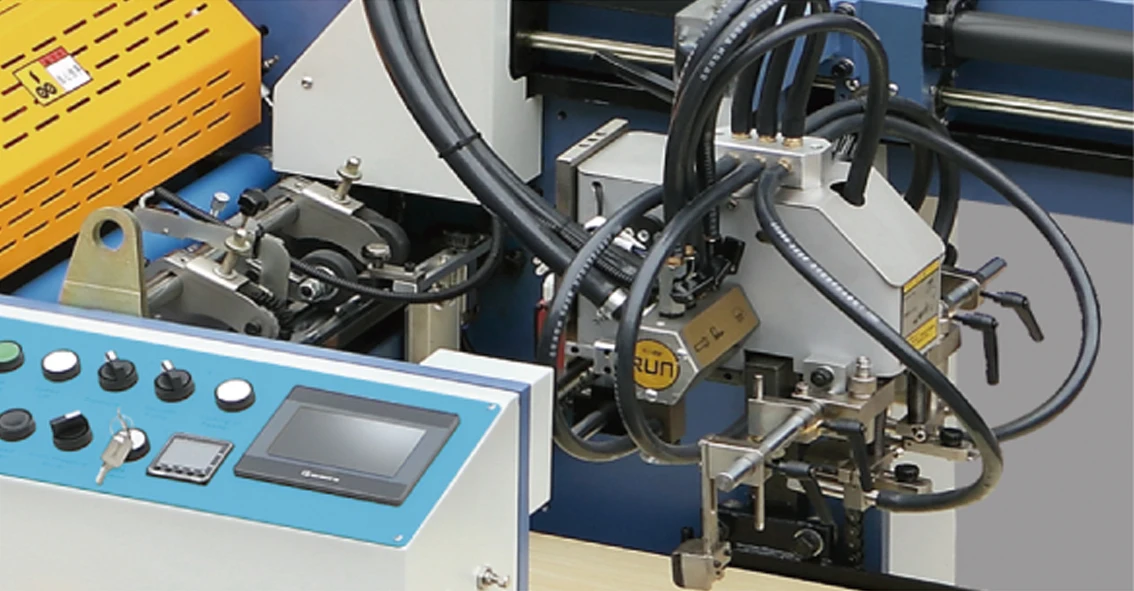

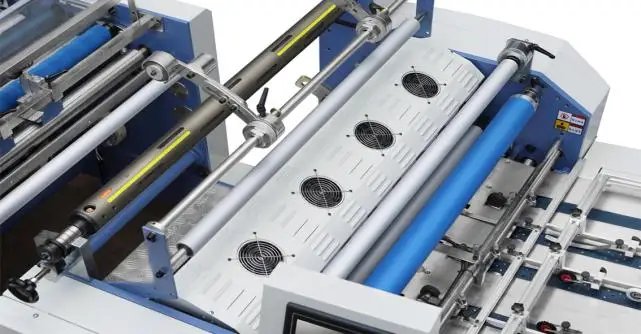

Overlap regulator Electromagnetic-heated laminating unit
Electric Automatic Thermal Film Laminator Machine SADF-540B Electric Automatic Thermal Film Laminator Machine SADF-540B

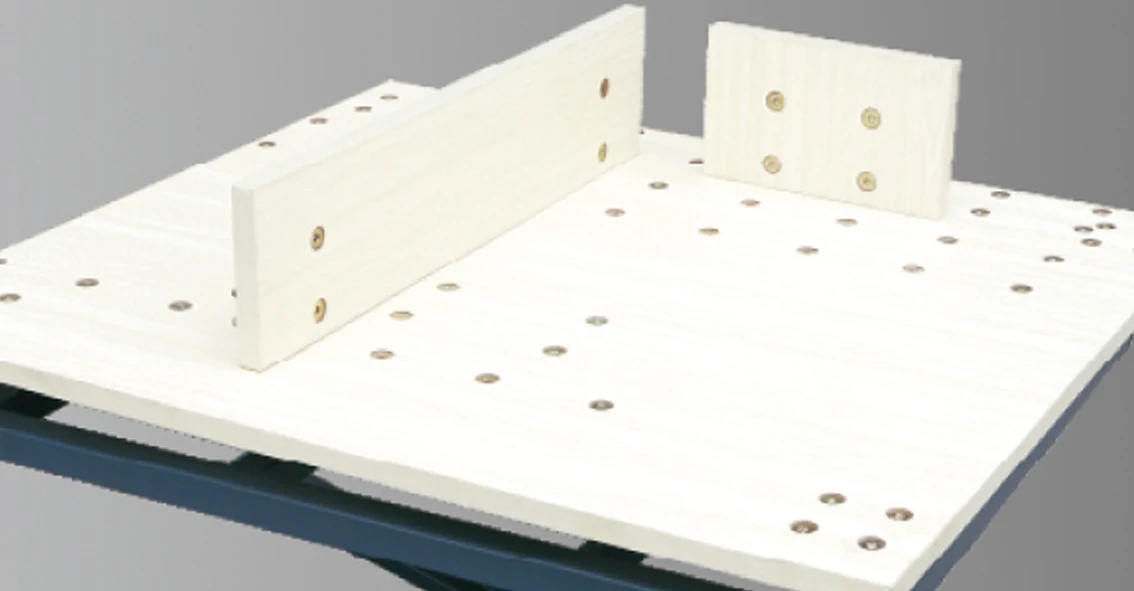

Pneumatic sheeter Vibrating jogger table
Electric Automatic Thermal Film Laminator Machine SADF-540B
Automatic stacker(Optional)
Electric Automatic Thermal Film Laminator Machine SADF-540B
Electric Automatic Thermal Film Laminator Machine SADF-540B
Electric Automatic Thermal Film Laminator Machine SADF-540B
Electric Automatic Thermal Film Laminator Machine SADF-540B
Electric Automatic Thermal Film Laminator Machine SADF-540B
Electric Automatic Thermal Film Laminator Machine SADF-540B
Electric Automatic Thermal Film Laminator Machine SADF-540B
Electric Automatic Thermal Film Laminator Machine SADF-540B
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free;
2)We can send technicians (engineers) to your factory for installation and training.
You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
