NFY-A800 Film Laminator High Speed Automatic Thermal Laminating Machine

Name: NFYA800 Film Laminator High Speed Automatic Thermal Laminating Machine
Brand: PRINTYOUNG
Price: 31300 USD

Quality NFY-A800 Film Laminator High Speed Automatic Thermal Laminating Machine for sale

Brand Name : PRINTYOUNG

Model Number : NFY-A800

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : US 31300 Set

Payment Terms : L/C, T/T

Supply Ability : 10 Set/Sets per Month

Delivery Time : 60 days

Packaging Details : Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.

Type : Laminating Machine

Automatic Grade : Automatic

Driven Type : Electric

Voltage : 220 V

Dimension : 6048*1735*1920 mm

Weight : 4550 KG

Max. Laminating Width : 780 mm

Max. Sheet Size : 780*800mm

Min. Sheet Size : 260*210mm

Paper Feeding Pile : 1000mm

Heating Roller Diameter : 380mm

Paper Thickness : 105 ~ 500 gsm

Laminating Speed : 5~100 m/min

Pre-Glue Film Thickness : 12 ~ 25μm

Max. Film Roll Diameter : 600mm

Total Power : 25 kw

Contact Now

NFY-A Automatic Thermal Laminating Machine

NFY-A800 Film Laminator High Speed Automatic Thermal Laminating Machine

Features

NFY-A series laminating machine is an economical pre-coating type laminating machine specially designed for small paper. as a professional equipment used for plastic film laminating on the surface of paper,Widely applicable for laminating in advertising poster, Picture books and magazine,display book,color paper box,

calendars,and commercial cards fields,Improving the printing matter grades,and achieve the purpose of dustproof, waterproof,oil proof.

*Thermal laminating (Pre-coating /thermal film)
*Film:OPP, BOPP,SOFT TOUCH FILM.

Technical Parameters

Model	NFY-A800
Max. Laminating Width	780 mm
Max. Sheet Size	780*800mm
Min. Sheet Size	260*210mm
Paper Feeding Pile	1000mm
Heating Roller Diameter	380mm
Paper Thickness	105 ~ 500 gsm
Laminating Speed	5~100 m/min
Pre-Glue Film Thickness	12 ~ 25μm
Max. Film Roll Diameter	Φ600mm
Total Power	25 kw ( 380 V AC3Φ50 / 60 HZ)
Working Power	18kw / h
Installed Power	40 KVA
Dimension(L x W x H)	604817351920 mm
Weight	4550KG
Loading	20GP foot container

Configuration

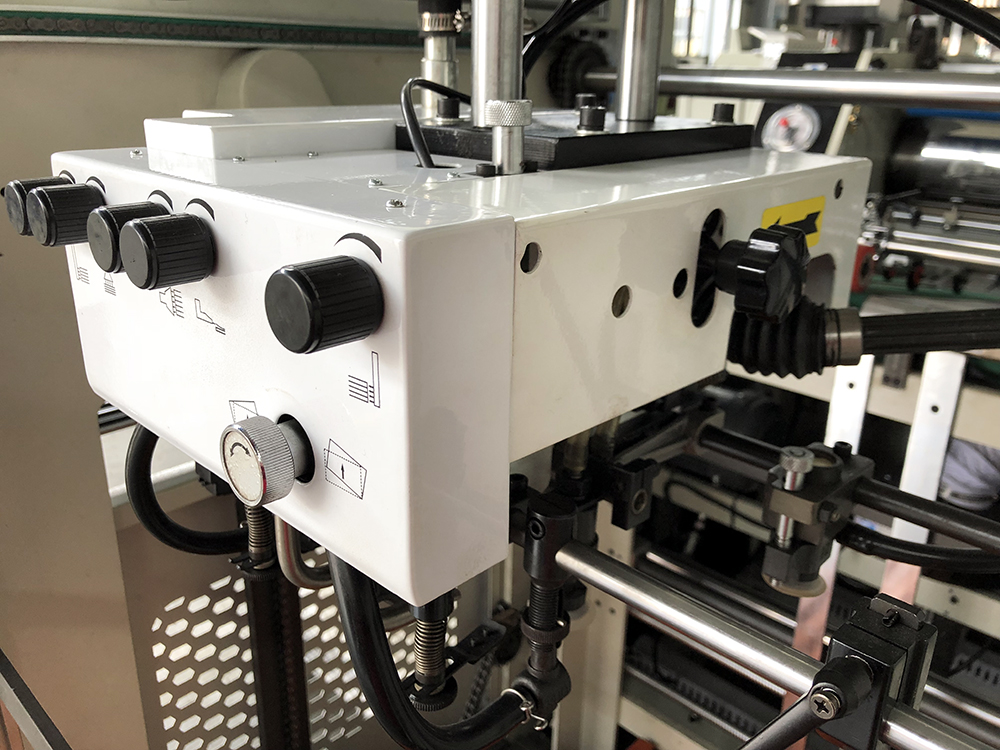

Feeding Unit

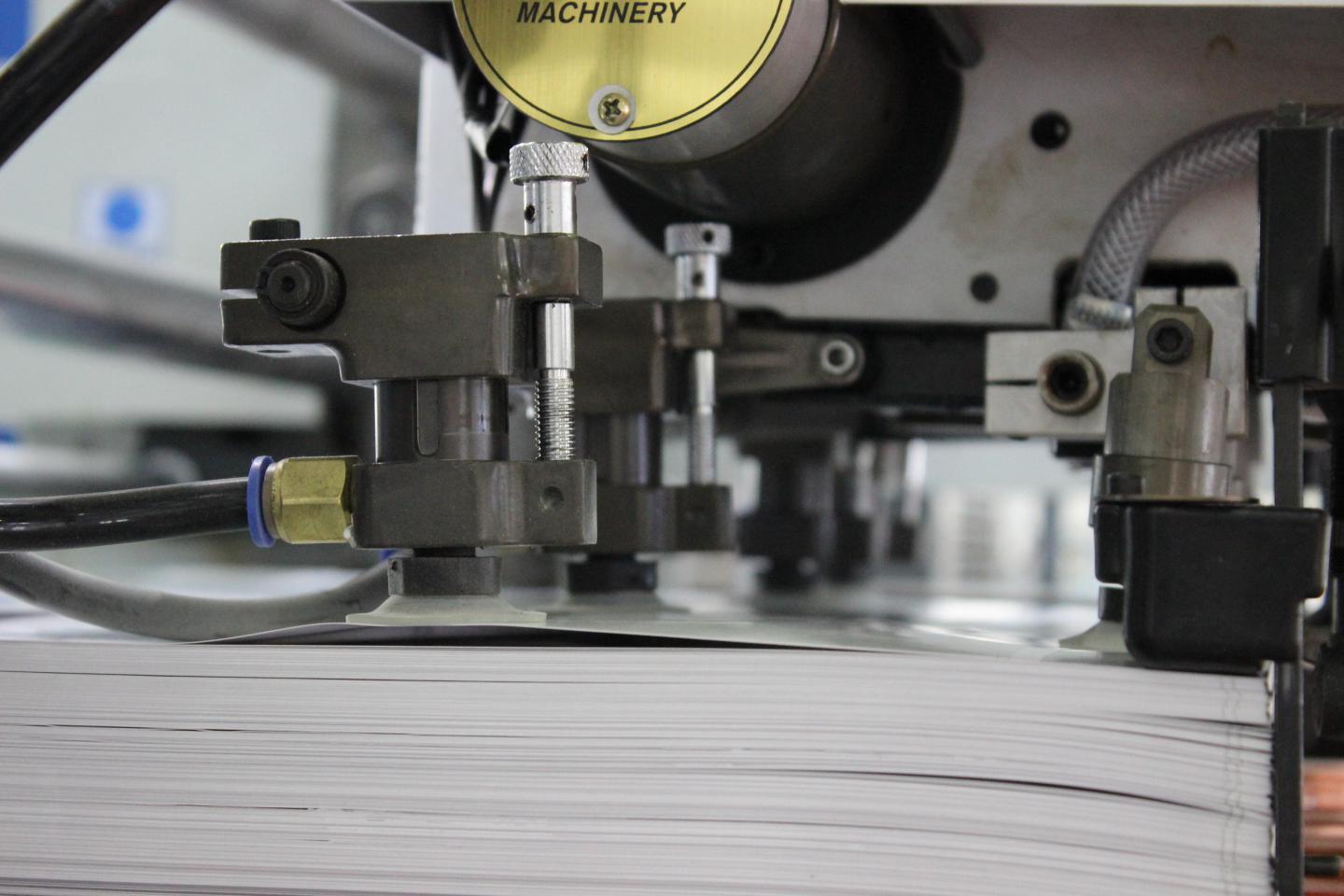

High Speed Feeder,4 suckers for lifting and 4 suckers for conveying structure.Max Speed 12000 sheets/h
The paper feeding table has upper and lower over-limit protection
The height of non-stop feeding can reach 1150mm,pre-stacking device,non-stop feeding
BECKER Vacuum pump

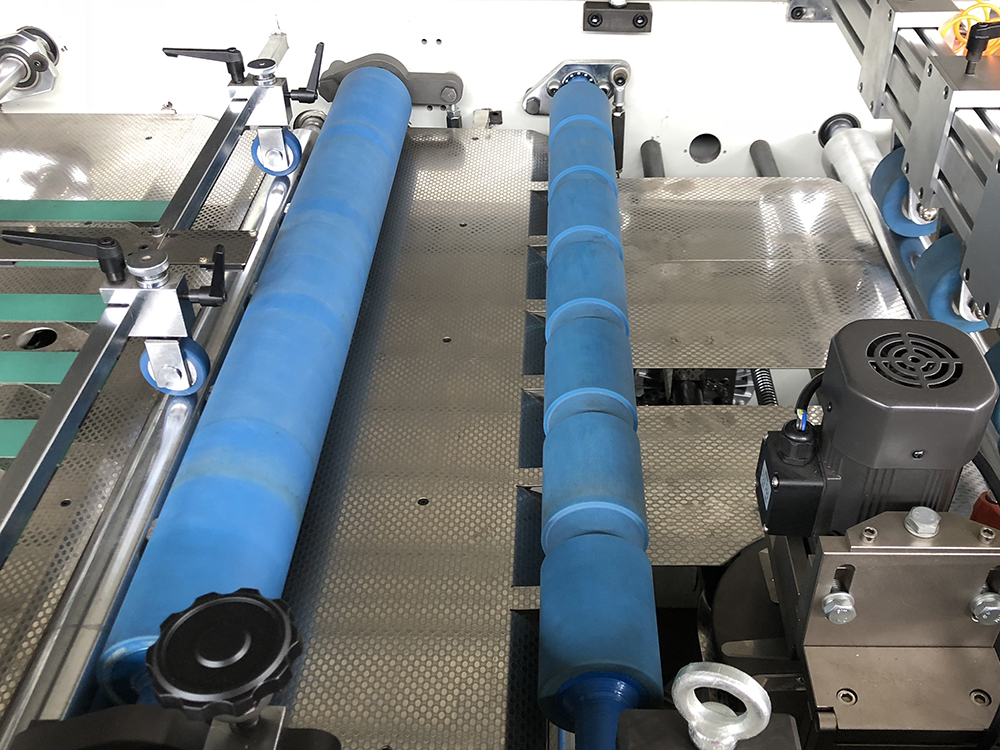

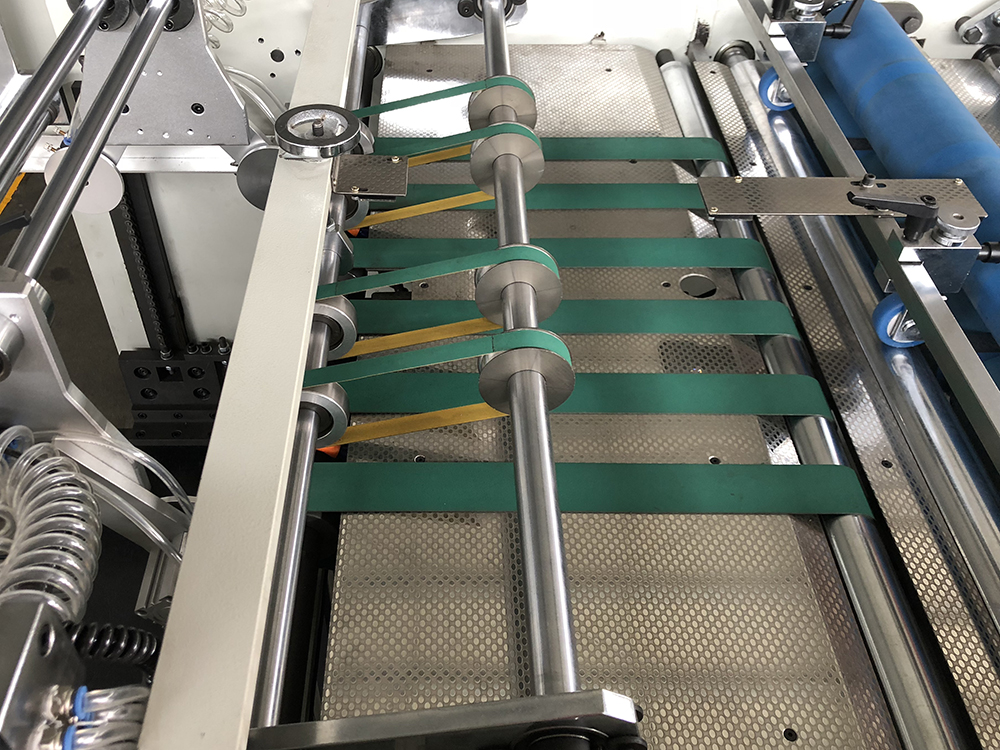

Conveying Table and Overlap

The conveying table adopts customized stainless steel corrugated board
The brush wheel and rubber pressing wheel move smoothly
Servo motor overlap,improve accuracy of lap,error≤±2mm

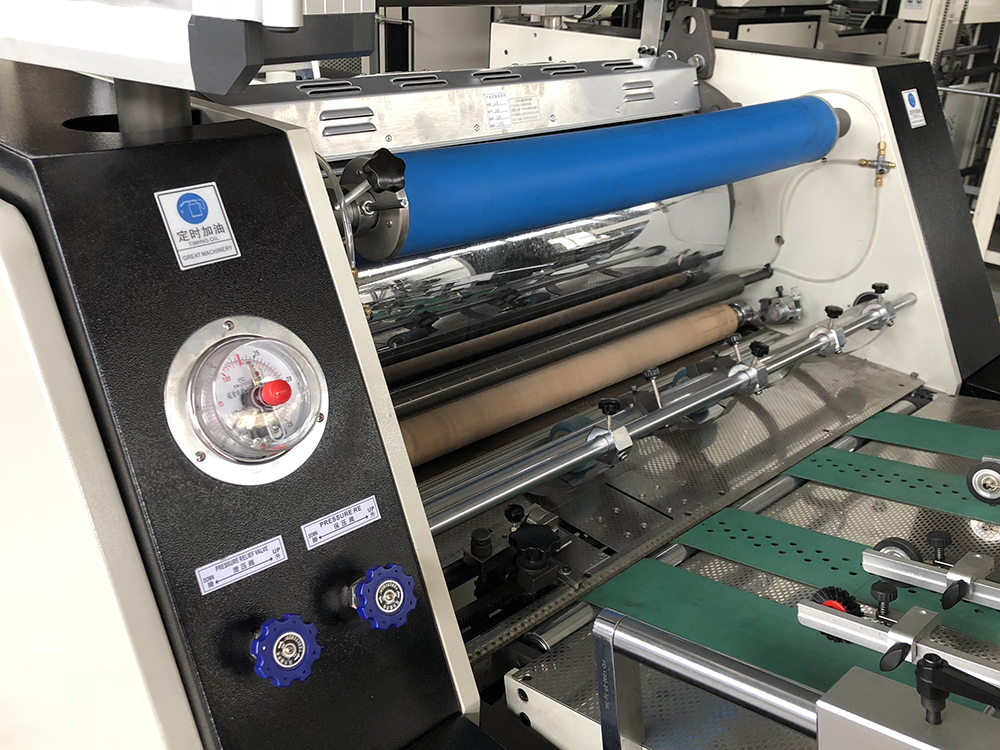

Laminating Unit

The hot-press steel roller (Dia.380mm) adopts electromagnetic heating system,Rapid heating,energy saving and environmental protection.
The pressing pressure is controlled by two sets of hydraulic cylinders and an automatic hydraulic system,which can balance the pressure on the upper and lower rollers
The surface of the pressure roller is covered with a special strength rubber layer.
Touch screen control board,The Internet of things,long remote control.

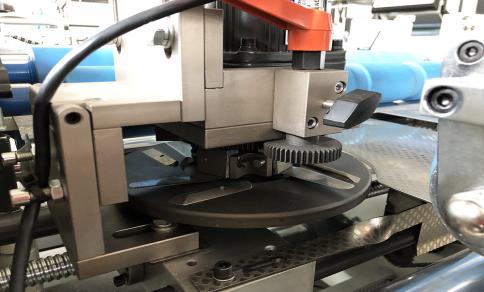

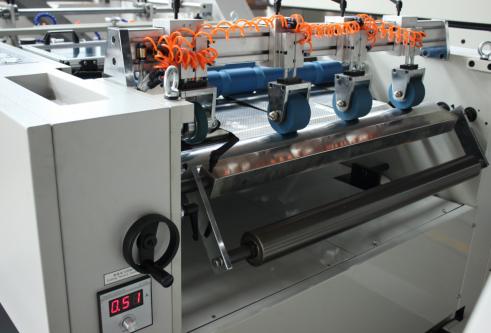

Cutting Part

The cutting unit adopts a round (flying) knife device,matched with a bouncing paper break device,and is easy to adjust.It can ensure effective cutting of paper thick more than 105g/m² and is suitable for OPP,BOPP film slitting.
Includes paper anti-curl device,which can effectively avoid curling phenomenon after thin paper laminating film break.
The paper cutter adopts frequency conversion speed control,which can be co-adjusted with the laminator speed.
The bouncing device ensures that the film breaks quickly after the disc knife cuts the film.
PLC programmable module linkage system,which automatically increases or decreases according to the speed of the laminating host.

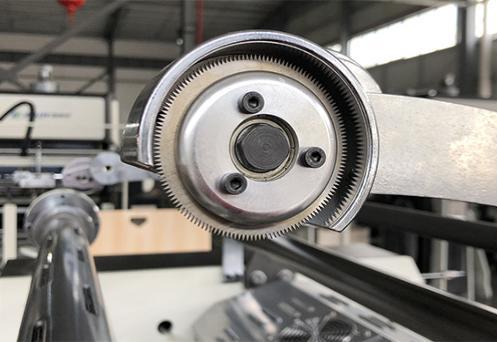

Punch Knife(Install on the Laminator)

The machine runs,resting the perforating blade on the edge of the film and punching holes in the film,and finally,through the
 bouncing device,breaks the film and separates the paper.

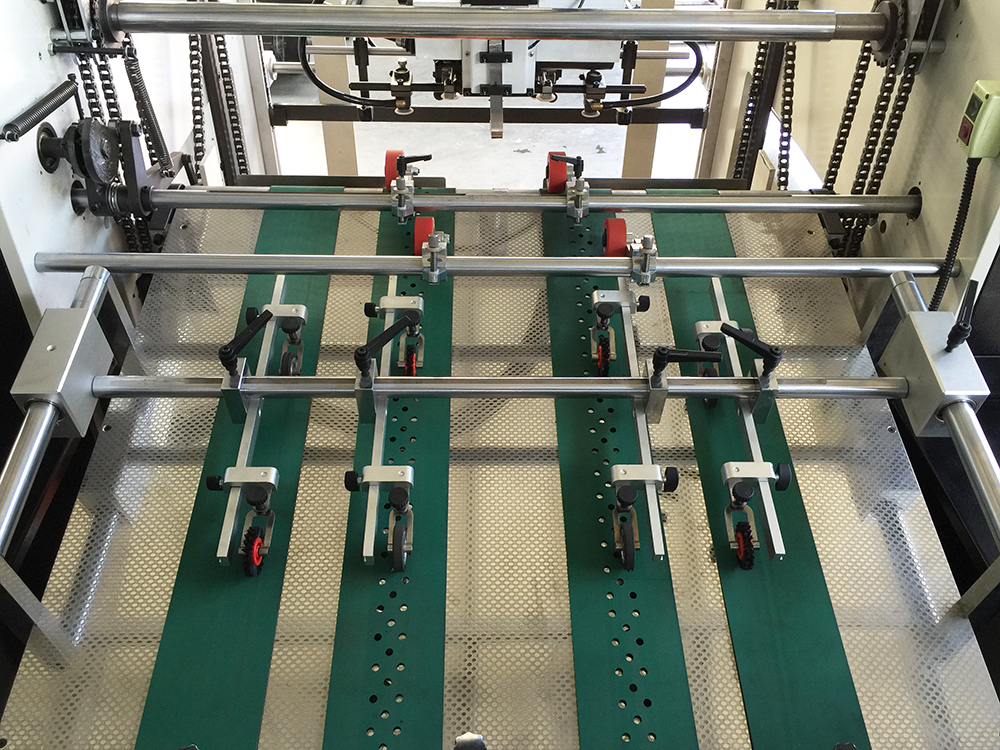

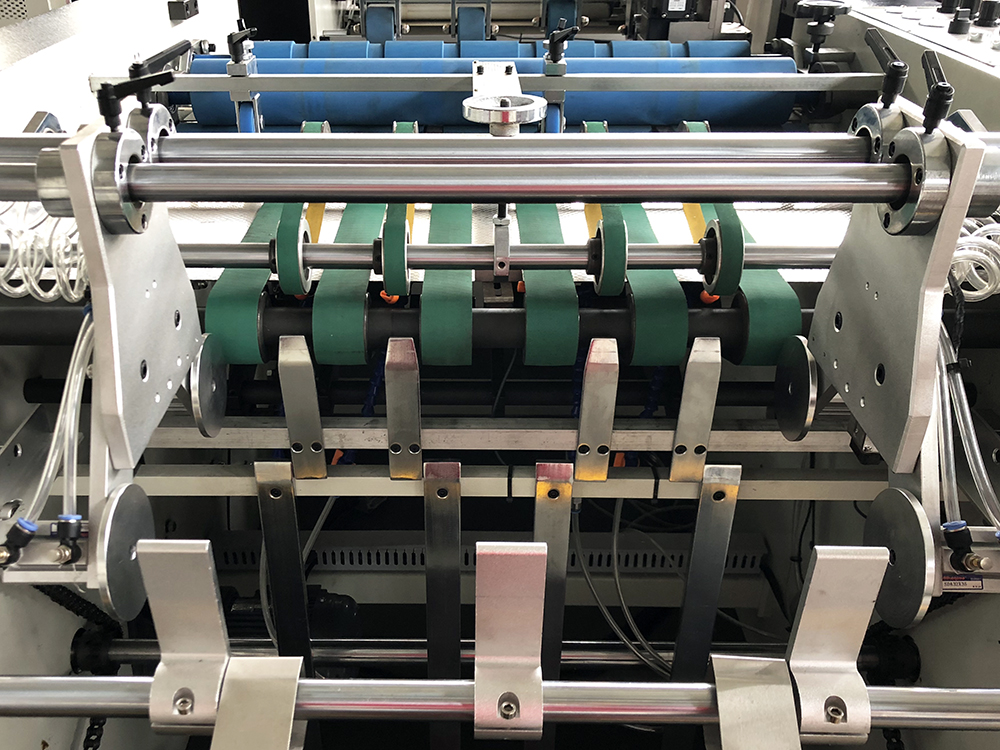

Automatic Paper Collecting Part

Wave-type paper delivery mechanism,conducive to thin paper collection
The counter,the paper receiving reaches the set number,it will stop automatically
Blowing device is conducive to tissue collection
Front and right paper patting device;paper delivery is neat and clean

Applications

Widely applicable for laminating in packaging,paper box,books,magazines,calendars,carton, handbags,Gift box,Wine packaging paper improving the printing matter grades,and achieve the purpose of dust-proof,water-proof,oil proof.It’s the best choice for printing and laminating enterprises of all scales.

Q1.Are you a manufacturer or a trading company?

A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.

Q2.What is the machine warranty?

A:One year.After the warranty,we still provide technical support to buyer at low cost.

Q3.What is the production time while placing order?

A:Normally about 10-20 days.

Q4.What is the delivery time?

A:15-30days after deposit.

Q5.Can your company handle shipping for customers?

A:Yes,just give us destination sea port or container yard.

Q6.Does the packing strong?

A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.

Q7.How about the machine installation and training?

A:1)We provide training in our factory for free;

2)We can send technicians (engineers) to your factory for installation and training.

You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.

Q8.Do you have machines in stock?

A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.

Q9.How can you assure the machines’ quality?

A:Each machine will be test running at least 24 hours before delivery to assure the quality.

And during the warranty,we will give spare parts for free if machine has any problem.

Q10.Do you inspect machines or test running before packing?

A:Of course we do.We have QC department to debug the machine before packing.

If you want to use specific material to do the test running,you need to pay for the cost of the material.

Q11.What’s the payment term?

A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.

Q12.Do you accept factory visiting?

A:Warmly welcome for your visiting.

Q13.How many years are you in printing field?

A:The Shanghai company since in 2008,the factory is more than 25years.

Q14.How many clients do you have?

A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
