1600 Model Single Facer Electrical Mill Roll Stand NC Sheet Cutter 2 Ply Corrugated Production Line

Name: 1600 Model Single Facer Electrical Mill Roll Stand NC Sheet Cutter 2 Ply Corrugated Production Line
Brand: PRINTYOUNG
Price: 39000 USD

Quality 1600 Model Single Facer Electrical Mill Roll Stand NC Sheet Cutter 2 Ply Corrugated Production Line for sale

Brand Name : PRINTYOUNG

Model Number : 1600

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : US 39000 Set

Payment Terms : L/C, T/T

Supply Ability : 30 Set/Sets per Month

Delivery Time : 45 days

Packaging Details : Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.

Effective Width : 1600 mm

Corrugated Roller : 280 mm

Pressure Roller : 284 mm

Glue Roller : 216 mm

Preheater Roller : 320 mm

Dia. of Clip Paper : 350 ~ 1500 mm

Working Pressure of Air Supply : 0.6 ~ 0.9 MPa

Cut Paper Precision : ± 2.5 mm

Contact Now

2 Ply Corrugated Production Line

SF-280 Model Steam Heating Single Facer Machine

Steam heating type.
Flute type:according to customer choose

1.Drive reducer box with oil immersed type lubricating to reduce noise keep running stable.adopt gimbal transmission.separate power.
2.Corrugating roller,pressure roller and glue roller by pneumatic adjustment.
3.Cardboard transmit adopt vacuum suction method,with wind control system.keep flute profiles stable of the lower-roller in the condition of running up.
4.Bearing of corrugated and pressure roller adopt high temperature lubricate grease. Glue parts auto supply glue circularly.
5.The upper-lower corrugating roller are made of high quality steel,after heat treatment.The hardness HRC58°-60°,the surface be grinded.
6.The glue part surface are treated by special mesh snicked and chromeplated.
7.Motorized or manual glue width dividing to match the paper width.
8.Glue part can be running independently or non-independently while stopped.Adopt main motor frequency conversion control.

Design Speed	100 m/min
Working Speed	40 ~ 80 m/min
Effective Width	1600 mm
Corrugated Roller	φ 280 mm
Pressure Roller	φ 284 mm
Glue Roller	φ 216 mm
Preheater Roller	φ 320 mm

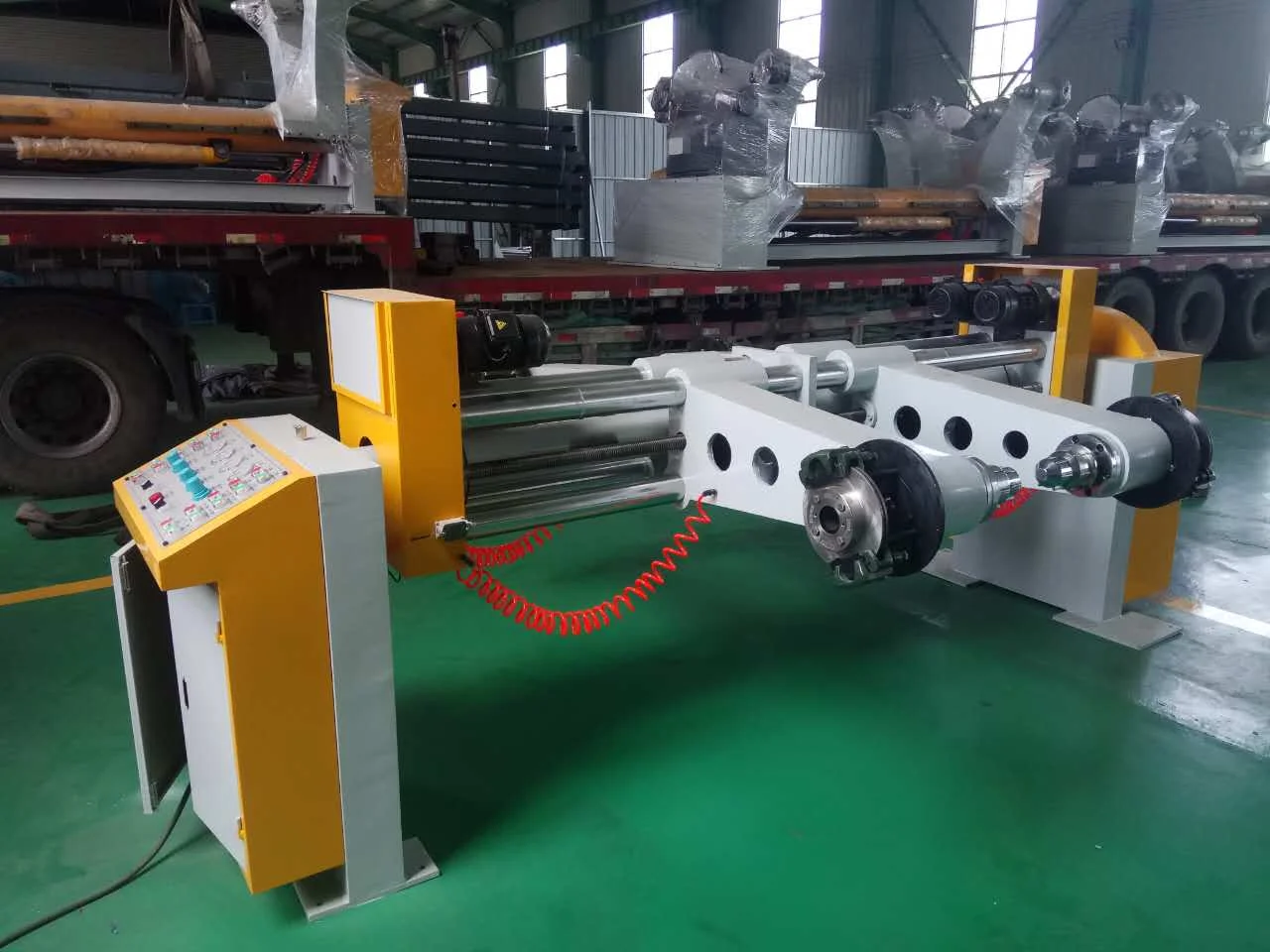

PRY-1600 Model Electrical Mill Roll Stand

1.The symmetric structure can be installed with two bundles of base paper at the same time used to change papers without halt.
2.This machine adopts the electrical driver to finish lifting up or down,clamping, loosening and centering the base paper.
3.This machine adopts the pneumatic tension controller to adjust the tensile force of base paper.
4.The head of clip paper adopts expansion style.
5.The tension control adopts pneumatic braking,which can also be on-line control together with Paper Splicer.

Operation Style of Base Paper Stand	Electrically mechanical type
Dia. of Clip Paper	Φ 350 mm ~ Φ 1500 mm
Max. Weight of One Side	1500 kg
Working Pressure of Air Supply	0.6 ~ 0.9 MPa
Total Power	5.2 kw

PRY-1600NC Model NC Sheet Cutter Machine

Series circle the tube paper roll knife to slice paper machine,main use come circle the tube paper cut into Flat sheets of paper of specification needed,have structure simple, adjust convenience,the service life be long etc.Advantage.
1)rational mechanical structure,strong form,good stability,have long performance life.
2)all operation control on the same side,easy to operate.
3)cut paper precision:±2.5mm.
4)working speed:60~100m/min.

Q1.Are you a manufacturer or a trading company?

A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.

Q2.What is the machine warranty?

A:One year.After the warranty,we still provide technical support to buyer at low cost.

Q3.What is the production time while placing order?

A:Normally about 10-20 days.

Q4.What is the delivery time?

A:15-30days after deposit.

Q5.Can your company handle shipping for customers?

A:Yes,just give us destination sea port or container yard.

Q6.Does the packing strong?

A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.

Q7.How about the machine installation and training?

A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.

Q8.Do you have machines in stock?

A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.

Q9.How can you assure the machines’ quality?

A:Each machine will be test running at least 24 hours before delivery to assure the quality.And during the warranty,we will give spare parts for free if machine has any problem.

Q10.Do you inspect machines or test running before packing?

A:Of course we do.We have QC department to debug the machine before packing.If you want to use specific material to do the test running,you need to pay for the cost of the material.

Q11.What’s the payment term?

A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.

Q12.Do you accept factory visiting?

A:Warmly welcome for your visiting.

Q13.How many years are you in printing field?

A:The Shanghai company since in 2008,the factory is more than 25years.

Q14.How many clients do you have?

A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
